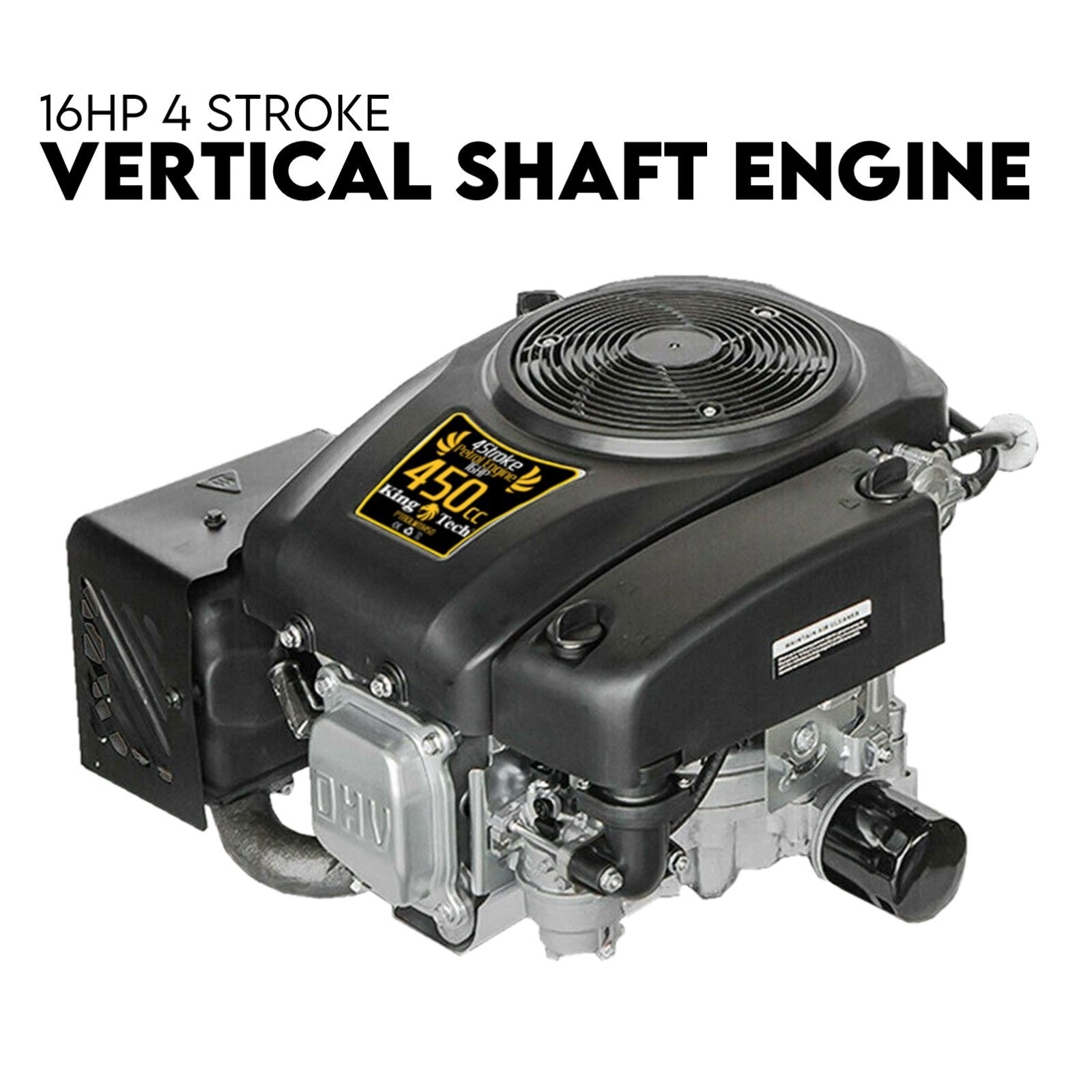

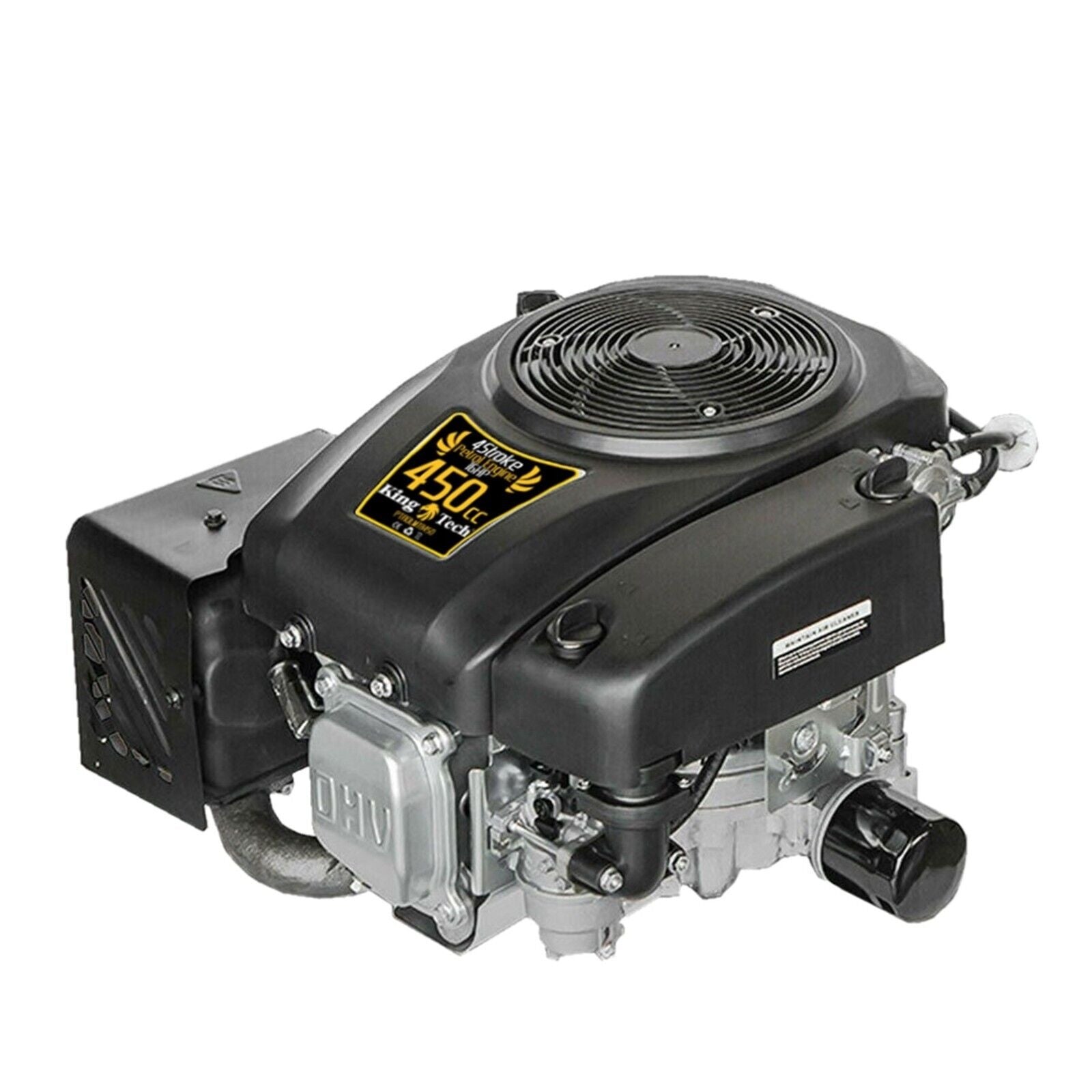

KingTech 16HP Ride-on Mower Engine 450cc Vertical Shaft

The KingTech 16HP Vertical Shaft Engine brings 450cc of heavy-duty 4-stroke OHV power built for Australian ride-on mowers and outdoor equipment. Featuring a cast iron bore, electric start, and universal Honda and Briggs bolt pattern, this engine handles large properties and tough conditions without compromise. Reliable ignition, smooth throttle response, and fuel-efficient performance keep your mower running season after season.

Fitted with a transistorized magneto ignition system and centrifugal mechanical governor, this engine maintains steady RPM under load and fires up reliably even after months of storage. The 25.4mm vertical shaft and counterclockwise rotation suit standard mower drive setups, while the direct replacement design means you can swap it in for most 10-18HP engines without modifications.

Built for everyday Aussie dependability with an air-cooled single cylinder, 1.5L oil capacity, and compact 38kg frame that installs easily into most ride-on mower chassis. Backed by strong torque output and simple maintenance requirements, this power unit keeps your property looking sharp without constant upkeep.

Features

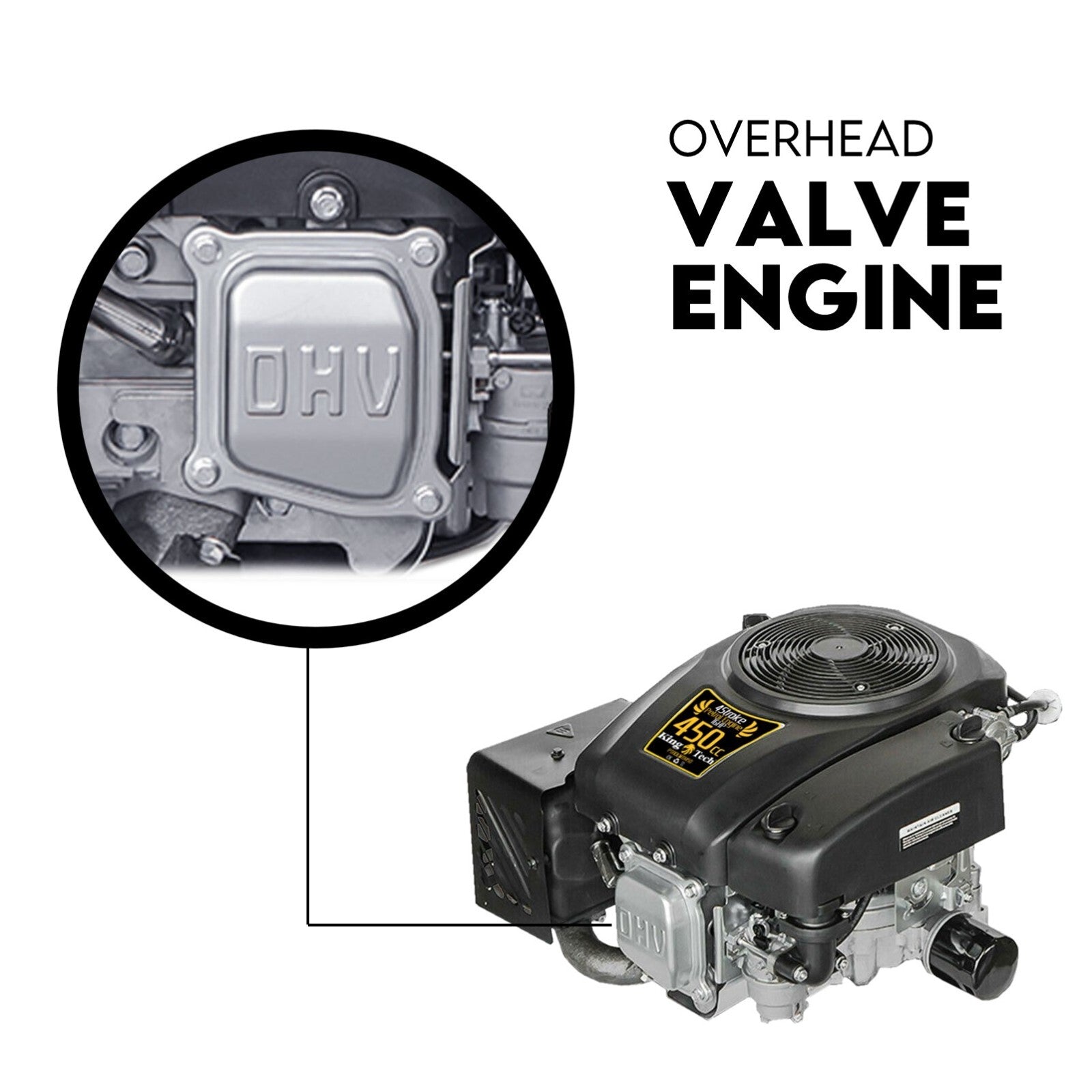

• 450cc 4-stroke OHV engine delivers strong, fuel-efficient performance
• 16 horsepower output perfect for ride-on mowers and yard equipment

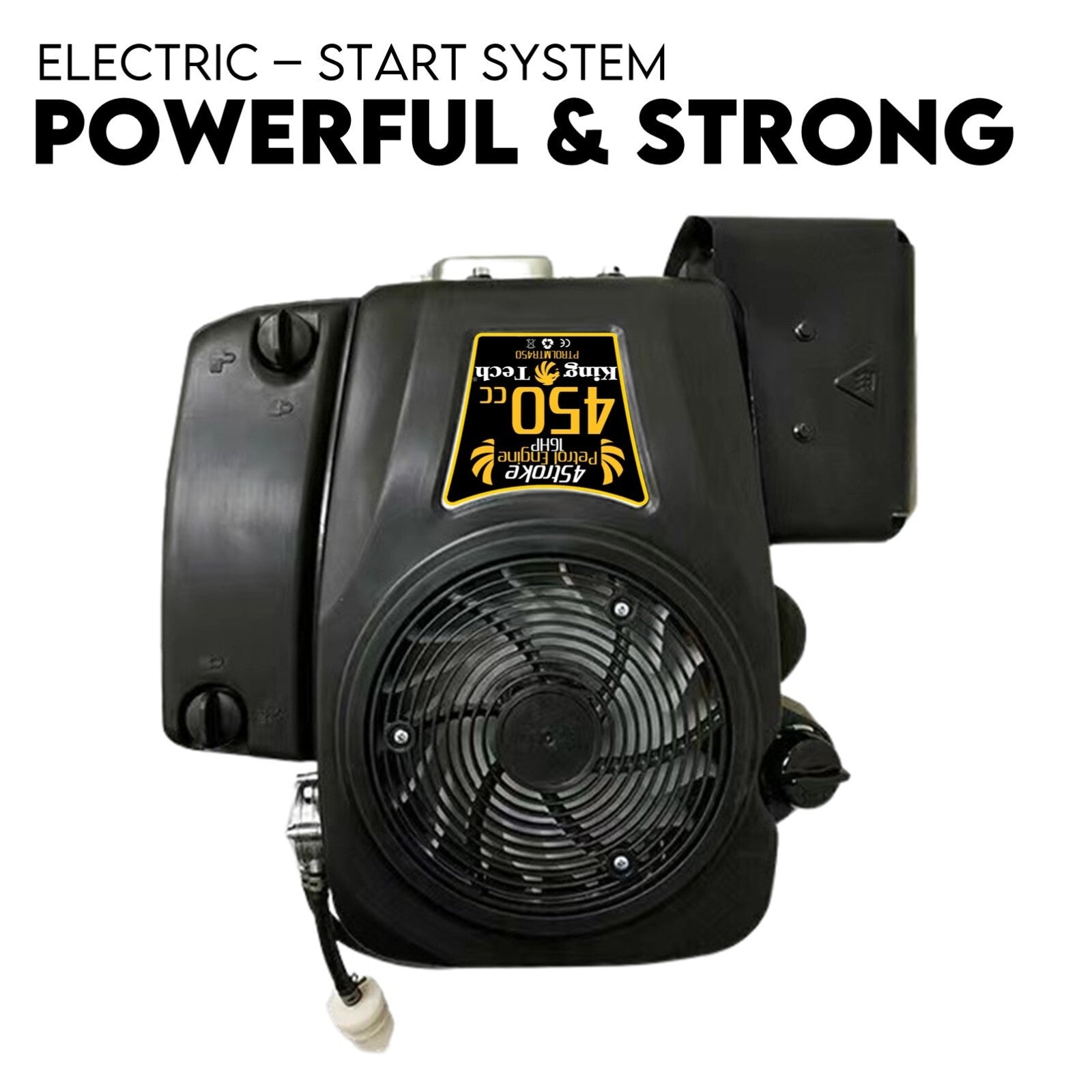

• Electric start system for easy ignition, even after long storage
• Cast iron bore increases engine life and wear resistance
• Universal fitment compatible with Honda and Briggs mounting bolt patterns
• 25.4mm vertical shaft standard output size for most ride-on mowers
• Transistorized magneto ignition ensures smooth, reliable starts
• Centrifugal mechanical governor maintains steady RPM under load
• Counterclockwise shaft rotation suits standard mower drive setups
• Flat suction valve carburetor optimized for steady fuel delivery
• Air-cooled single cylinder reduces weight and simplifies upkeep
• Compact 38kg build for easy installation and handling

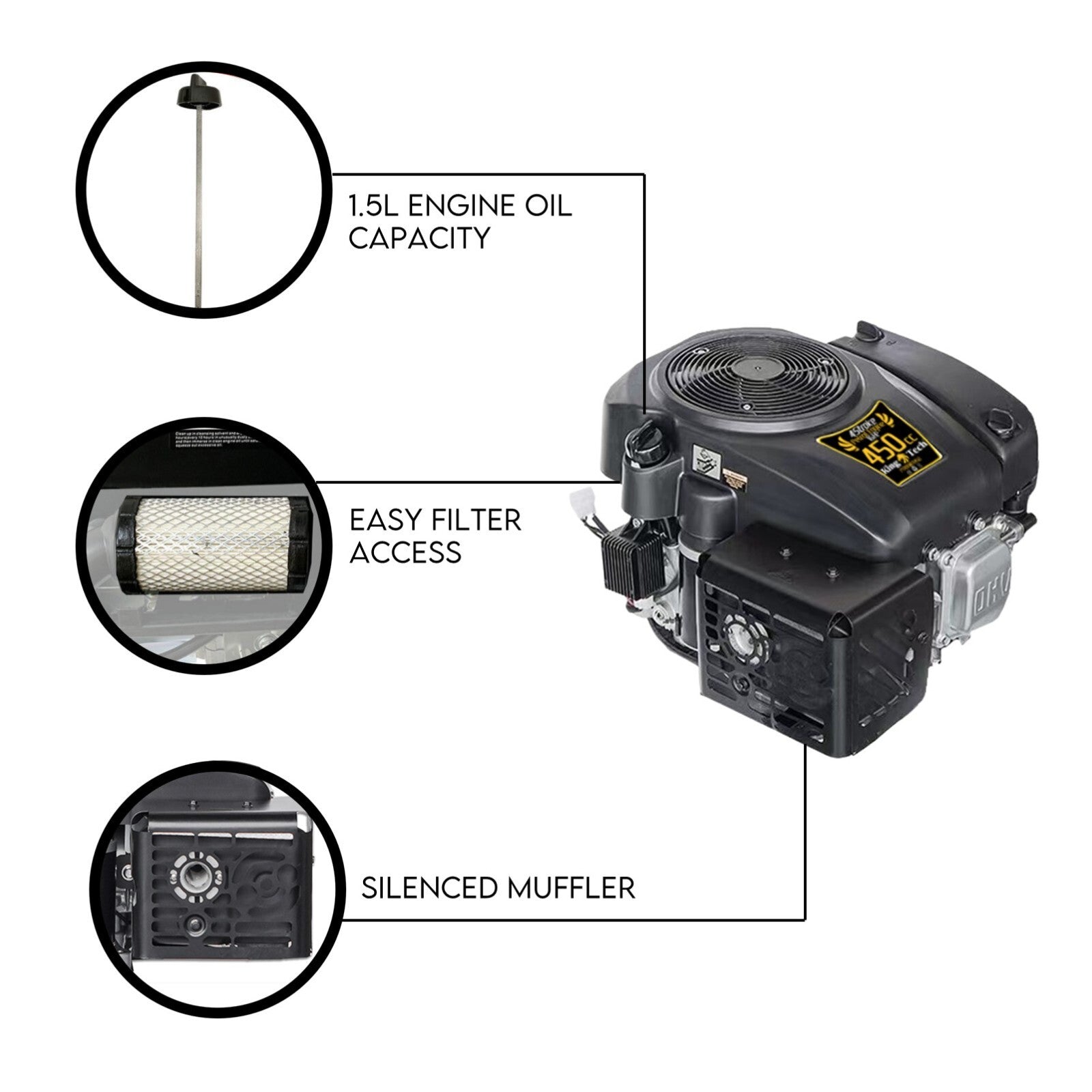

• 1.5L oil capacity designed for long operating hours
• Direct replacement option ideal for most 10-18HP mower engines

Specifications

• Engine Type: Air-Cooled, Single Cylinder, 4-Stroke
• Horsepower: 16HP
• Engine Capacity: 450cc
• Bore and Stroke: 92 x 68mm

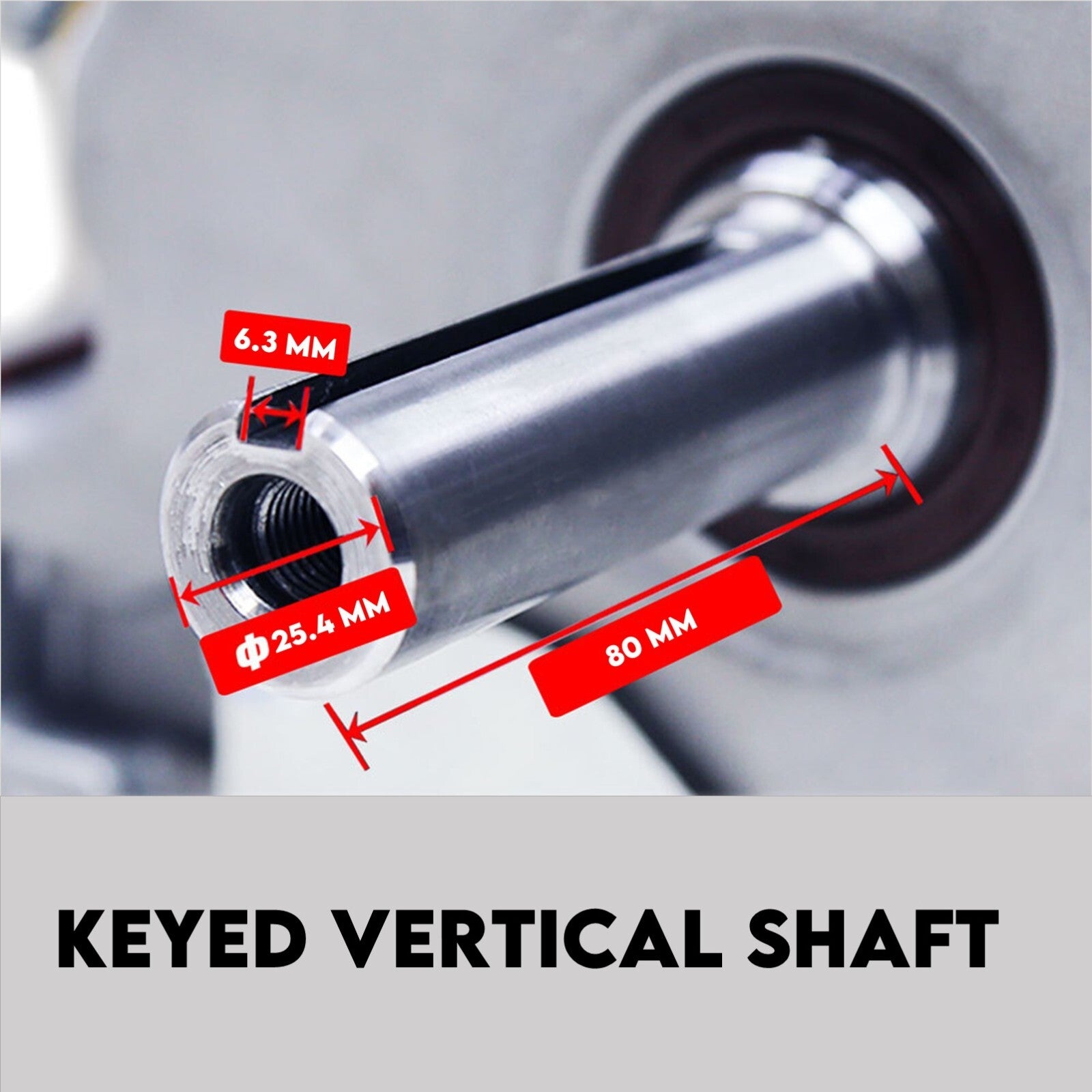

• Shaft Type: Vertical, 25.4mm (1") Parallel Shaft
• Shaft Rotation: Counterclockwise
• Compression Ratio: 8.7:1
• Net Power: 11 kW @ 3600 RPM
• Net Torque: 31 Nm @ 2500 RPM
• Ignition System: Transistorized Magneto
• Starting System: Electric Starter
• Carburetor Type: Flat Suction Valve
• Governor System: Centrifugal Mechanical
• Oil Capacity: 1.5 L
• Weight: 38 kg

Installation Details

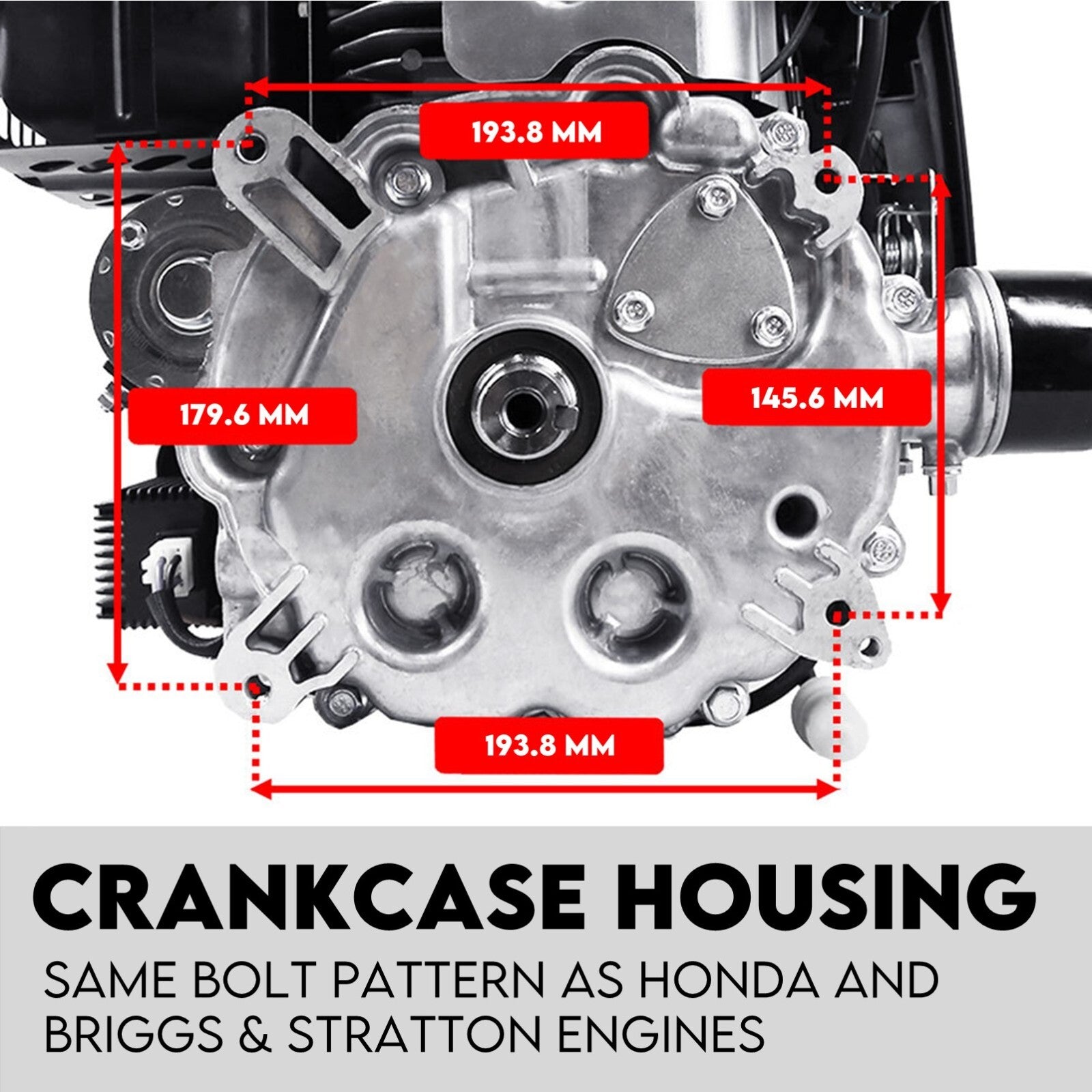

• Mounting interface includes 2 through-holes, 2 blind holes, each 8.8mm in diameter for secure attachment
• Bolts at the solenoid valve are not required for this installation
